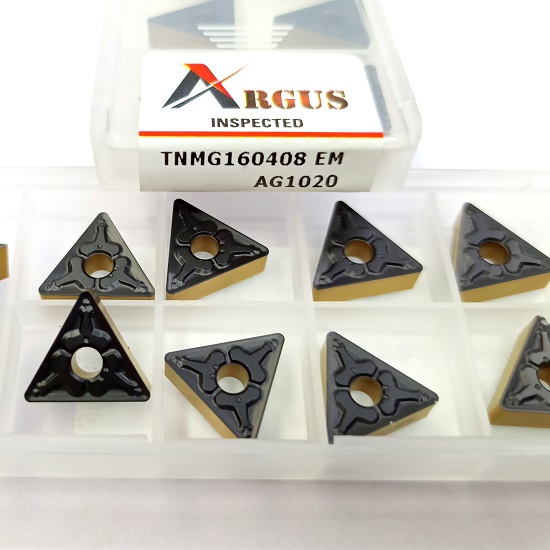

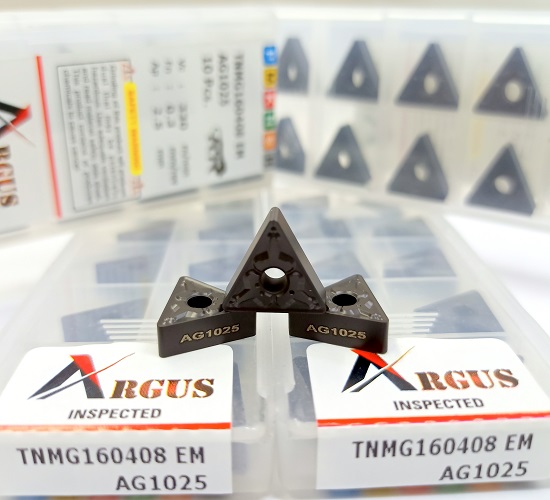

TNMG

TNMG inserts are ISO turning inserts and most commonly used in almost all CNC Lathes. It is used for Profile Turning applications and general shaft turning applications. Insert is having 6 cutting edges.

Specifications

Item Details	ØI.C	S	Ød	R	AG1018	AG1020	AG1025
TNMG160404-AQ	9.525	4.76	3.81	0.4	Y	Y	N
TNMG160408-AQ	9.525	4.76	3.81	0.8	Y	Y	N
TNMG160412-AQ	9.525	4.76	3.81	1.2	Y	Y	N
TNMG160404-DC	9.525	4.76	3.81	0.4	N	Y	Y
TNMG160408-DC	9.525	4.76	3.81	0.8	N	Y	Y
TNMG160412-DC	9.525	4.76	3.81	1.2	N	Y	N
TNMG160404-EM	9.525	4.76	3.81	0.4	Y	Y	Y
TNMG160408-EM	9.525	4.76	3.81	0.8	Y	Y	Y
TNMG160412-EM	9.525	4.76	3.81	1.2	Y	Y	Y
TNMG160404-OEM	9.525	4.76	3.81	0.4	N	N	Y
TNMG160408-OEM	9.525	4.76	3.81	0.8	N	N	Y
TNMG160412-OEM	9.525	4.76	3.81	1.2	N	N	Y
TNMG160404L-ZC	9.525	4.76	3.81	0.4	Y	N	Y
TNMG160408L-ZC	9.525	4.76	3.81	0.8	Y	N	Y
TNMG160404R-ZC	9.525	4.76	3.81	0.4	Y	N	Y
TNMG160408R-ZC	9.525	4.76	3.81	0.8	Y	N	Y
